首页 » 产品中心 » 中效过滤系列 » SBM 化纤袋式过滤器Synthetic Pocket Filter

中效过滤系列

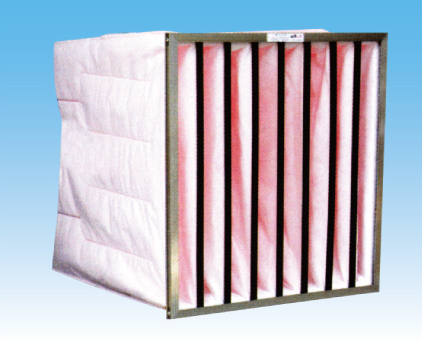

SBM 化纤袋式过滤器Synthetic Pocket Filter


性能特点 Features
▪性价比高
▪高集尘能力

外框:镀锌框,铝框,或不锈钢外框,可选厚度 21mm,25mm,46mm。
滤料:聚脂合成纤维滤料;高容尘量,低阻力;超声波无缝密合。
效率:(EN779:2002)G4,F5,F6,F7,F8,F9;
            (ASHRAE 52.2:2007)MERV8, MERV10, MERV12, MERV13,
               MERV14, MERV15。
建议终压损:450Pa。
使用温度:常温。


▪Excellent price performance ratio
▪High dust holding capacity

Frame:Galvanized frame, aluminum frame, stainless steel frame, Frame can choose 21mm,25mm,46mm.
Media: high performance synthetic fiber;high dust-holding capacity, low initial resistance;pockets are made from leak free ultra sonic machine.
Efficiency:(EN779:2002)G4,F5,F6,F7,F8,F9;
           (ASHRAE 52.2:2007) MERV8, MERV10, MERV12, MERV13,  MERV14, MERV15.
Recommended final pressure drop:450Pa.


应用Applications
用于电子,生物制药,机械仪表,石化轻工等空气净化系统
作为HEPA的前道保护段过滤器
Suitable for the electronics, bio-pharmaceutical, machinery,instrumentation, petrochemical and light industry etc general airpurification systems.
As pre filters for hepa filters

独特的合成口袋过滤器,它可以用来作为预滤器或终端过滤器。由于其高集尘能力和坚固的口袋设计,它特别适用于艰难的运营条件,包括变风量系统、换流系统和风机反复开关。
当用作预滤器,它能阻止高效过滤器不必要的尘埃加载,延长其使用寿命。因此,终端过滤的频率需要改变的是空气处理系统成本效益增减。
Unique synthetic pocket filter which can be used as a prefilter or as a final filter.Due to its high dust holding capacity and robust pocket design it is particularly suited for difficult operating conditions,including variable air volume,turbulent airflow and repeated fan shutdown.
When used as a prefilter,it protects higher efficiency filters from unnecessary dust loading,prolonging their service life .As a result,the frequency with which final filters need to be changed is reduced-increasing the cost effectiveness of the air handling
system.

常用规格 Common Specifications

型号

实际尺寸

袋数

滤料面积

额定风量

初期压损

终期压损

Model

Dimensions

Pocket

Media Air Flow

Rated  Air Flow

Initial Pressure Drop(Pa)

Final Pressure   Drop

W*H*D

W*H*D(mm)

(个)

m²)

(m³/h)

G3

G4

F5

F6

F7

F8

F9

G3-F8

F9

SBM-24*24*25

592*592*635

8

3.3

3400

37

45

55

58

90

95

155

250

310

SBM-20*24*25

490*592*635

6

2.47

2850

37

45

55

58

90

95

155

250

310

SBM-20*20*25

490*490*635

5

1.75

2300

38

47

55

58

90

95

155

250

310

SBM-12*24*25

287*592*635

4

1.65

1700

38

48

55

58

90

95

155

250

310

SBM-24*24*22

592*592*550

8

2.84

3400

40

49

60

65

105

110

165

250

330

SBM-20*24*22



490*592*550

6

2.13

2850

40

49

60

65

105

110

165

250

330

SBM-20*20*22

490*490*550

5

1.15

2300

42

50

60

65

105

110

165

250

330

SBM-12*24*22

287*592*550

4

1.42

1700

42

50

60

65

105

110

165

250

330

SBM-24*24*15

592*592*381

8

1.93

3400

45

58

70

75

125

130

200

250

400

SBM-20*24*15

490*592*381

6

1.45

2850

46

60

70

75

125

130

200

250

400

SBM-20*20*15

490*490*381

5

1.03

2300

46

60

70

75

125

130

200

250

400

SBM-12*24*15

287*592*381

4

0.97

1700

46

60

70

75

125

130

200

250

400

备注:1、性能初阻力公差为±10%  2、可提供特殊尺寸制作0

1、若遇规格、结构变更,以本公司提供的新数据为准
2、本公司接受非标准规格的订货

1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
