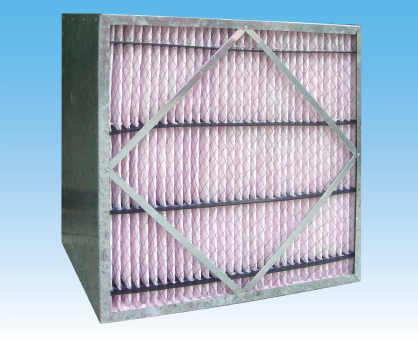

性能特点Features
袋式设计
结构坚固
外框：镀锌框，铝框，或不锈钢外框，可选厚度 21mm,25mm,46mm。
滤料：玻璃纤维，V形滤袋结构；高容尘量，低阻力。
效率：（EN779:2002）F5，F6,F7,F8,F9；
（ASHRAE 52.2:2007）MERV10, MERV12, MERV13, MERV14,
MERV15
建议终压损：550Pa。
使用温度：常温。
■ Patented pocket design
■Sturdy construction
Frame:Galvanized frame, aluminum frame, stainless steel frame, Frame can choose 21mm,25mm,46mm.
Media: Using special glass fiber as the filter material.
Efficiency:(EN779:2002)F5,F6,F7,F8,F9;
(ASHRAE 52.2:2007) MERV10, MERV12, MERV13, MERV14,
MERV15
Recommended final pressure drop:550Pa.
应用Applications
用于电子，生物制药，机械仪表，石化轻工等空气净化系统
作为HEPA的前道保护段过滤器
Suitable
for the electronics, bio-pharmaceutical, machinery,instrumentation,
petrochemical and light industry as general air purification systems.
As pre filters for hepa filters
常用规格 Common Specifications
实际尺寸 | 袋数 | 滤料面积 | 额定风量 | 初期压损 | 终期压损 | ||||||||
Model | Dimensions | Media Air Flow | Rated Air Flow | Initial Pressure Drop(Pa) | Final Pressure Drop | ||||||||
W*H*D | W*H*D(mm) | (个） | （m²) | (m³/h) | G3 | G4 | F5 | F6 | F7 | F8 | F9 | G3-F8 | F9 |
SGM-24*24*25 | 592*592*635 | 8 | 3.3 | 3400 | 37 | 45 | 55 | 58 | 90 | 95 | 155 | 250 | 310 |
SGM-20*24*25 | 490*592*635 | 6 | 2.47 | 2850 | 37 | 45 | 55 | 58 | 90 | 95 | 155 | 250 | 310 |
SGM-20*20*25 | 490*490*635 | 5 | 1.75 | 2300 | 38 | 47 | 55 | 58 | 90 | 95 | 155 | 250 | 310 |
SGM-12*24*25 | 287*592*635 | 4 | 1.65 | 1700 | 38 | 48 | 55 | 58 | 90 | 95 | 155 | 250 | 310 |
SGM-24*24*22 | 592*592*550 | 8 | 2.84 | 3400 | 40 | 49 | 60 | 65 | 105 | 110 | 165 | 250 | 330 |
SGM-20*24*22 | 490*592*550 | 6 | 2.13 | 2850 | 40 | 49 | 60 | 65 | 105 | 110 | 165 | 250 | 330 |
SGM-20*20*22 | 490*490*550 | 5 | 1.15 | 2300 | 42 | 50 | 60 | 65 | 105 | 110 | 165 | 250 | 330 |
SGM-12*24*22 | 287*592*550 | 4 | 1.42 | 1700 | 42 | 50 | 60 | 65 | 105 | 110 | 165 | 250 | 330 |
SGM-24*24*15 | 592*592*381 | 8 | 1.93 | 3400 | 45 | 58 | 70 | 75 | 125 | 130 | 200 | 250 | 400 |
SGM-20*24*15 | 490*592*381 | 6 | 1.45 | 2850 | 46 | 60 | 70 | 75 | 125 | 130 | 200 | 250 | 400 |
SGM-20*20*15 | 490*490*381 | 5 | 1.03 | 2300 | 46 | 60 | 70 | 75 | 125 | 130 | 200 | 250 | 400 |
SGM-12*24*15 | 287*592*381 | 4 | 0.97 | 1700 | 46 | 60 | 70 | 75 | 125 | 130 | 200 | 250 | 400 |
备注：1、性能初阻力公差为±10% 2、可提供特殊尺寸制作 | |||||||||||||
Model | Dimensions | Media Air Flow | Rated Air Flow | Initial Pressure Drop(Pa) | Final Pressure Drop | ||||||||
W*H*D | W*H*D(mm) | piece | （m²) | (m³/h) | G3 | G4 | F5 | F6 | F7 | F8 | F9 | G3-F8 | F9 |
SGM-24*24*25 | 592*592*635 | 8 | 3.3 | 3400 | 37 | 45 | 55 | 58 | 90 | 95 | 155 | 250 | 310 |
SGM-20*24*25 | 490*592*635 | 6 | 2.47 | 2850 | 37 | 45 | 55 | 58 | 90 | 95 | 155 | 250 | 310 |
SGM-20*20*25 | 490*490*635 | 5 | 1.75 | 2300 | 38 | 47 | 55 | 58 | 90 | 95 | 155 | 250 | 310 |
SGM-12*24*25 | 287*592*635 | 4 | 1.65 | 1700 | 38 | 48 | 55 | 58 | 90 | 95 | 155 | 250 | 310 |
SGM-24*24*22 | 592*592*550 | 8 | 2.84 | 3400 | 40 | 49 | 60 | 65 | 105 | 110 | 165 | 250 | 330 |
SGM-20*24*22 | 490*592*550 | 6 | 2.13 | 2850 | 40 | 49 | 60 | 65 | 105 | 110 | 165 | 250 | 330 |
SGM-20*20*22 | 490*490*550 | 5 | 1.15 | 2300 | 42 | 50 | 60 | 65 | 105 | 110 | 165 | 250 | 330 |
SGM-12*24*22 | 287*592*550 | 4 | 1.42 | 1700 | 42 | 50 | 60 | 65 | 105 | 110 | 165 | 250 | 330 |
SGM-24*24*15 | 592*592*381 | 8 | 1.93 | 3400 | 45 | 58 | 70 | 75 | 125 | 130 | 200 | 250 | 400 |
SGM-20*24*15 | 490*592*381 | 6 | 1.45 | 2850 | 46 | 60 | 70 | 75 | 125 | 130 | 200 | 250 | 400 |
SGM-20*20*15 | 490*490*381 | 5 | 1.03 | 2300 | 46 | 60 | 70 | 75 | 125 | 130 | 200 | 250 | 400 |
SGM-12*24*15 | 287*592*381 | 4 | 0.97 | 1700 | 46 | 60 | 70 | 75 | 125 | 130 | 200 | 250 | 400 |
1、若遇规格、结构变更，以本公司提供的新数据为准
2、本公司接受非标准规格的订货
1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
