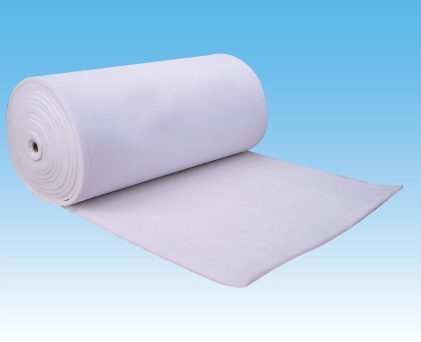

SGP不织布滤网

性能特点 Features
外框:可整卷或裁片供应,亦可加装镀锌框或铝合金框。
滤料:由高性能抗断的合成纤维过滤材料组成,递增结构,容尘量大,效率高,不含硅。
效率:(EN779:2002 filter class)G3,G4,F5
      (ASHRAE 52.2:2007 filter class)MERV6,MERV7,MERV10.

耐温度:100˚C
防火级别:DIN 53438 F1。
◆采用聚酯、聚酰胺、尼龙等化学合成纤维制成,依纤维线径粗细及密度不同,以非织物方式、多向性、渐层性轧针法制成,具有高透气性、低压损、高集尘量之特性
◆采用内外熔点高低不同的复合纤维制成,纤维之间的接点牢固、结合紧密、不易脱落
◆不添加任何化学粘剂,使用热熔纤维将粗细纤维混粘在一起,遇火源不易延燃,阻燃点符合德国工业标准DIN53438F1
◆可清洗并重复使用
◆可加装镀锌钢板框或铝合金框,亦可加装金属背网,可有效支撑滤网承受大风量不易变形

Frame:Supply of the entire volume  Or plus galvanized border or aluminum alloy frame.
Media:the filter mats are Made of high performance polyester fibers with durable thermal bonding,Increment structure, large dust capacity,Not silicon
Efficiency:(EN779:2002 filter class)G3,G4,F5
(ASHRAE 52.2:2007 filter class)MERV6,MERV7,MERV10.
Temperature Resistance:100˚C
Fire rating:DIN 53438 class F1

◆Using polyester, polyamide, nylon, etc. chemical synthetic fibers, in
accordance with different diameter and density of them, make into a
conformation of the increase in density by non-woven process, it has
a property of high permeability, low initial resistance and high dust
collection rate
◆Using different melting point of exterior and interior of the fiber,
thick and thin fibers was fused together by hot-melt fibers, without
any chemical adhesives
◆The contacts between the fibers are strong. The integration between
the fibers is closer, and the fiber is not easy to shed.
◆Low flammability, fire resistance measures up to Deutsche industry
norm DIN53438F1
◆Can be washed repeatedly
◆Can be with galvanized steel or aluminum alloy frame and also
expanded metal on the exhaust side, to effectively prevent deformation
of the separator under high-speed airflow

应用 Applications

商用和工业用通风空调系统预过滤
G3,G4初效过滤棉适用于喷漆系统和喷涂车间的前道过滤
Prefilters for commercial&industeial AHU
G3 and G4 are well suited for pre-filtration of intakd air for painting systems and paint-spray booths

常用规格 Common Specifications



Model

SGP-100

SGP-200

SGP-300

SGP-400

SGP-500

规格

 Size

5mmT×2m×50m

10mmT×2m×20m

15mmT×2m×20m

20mmT×2m×20m

25mmT×2m×20m

滤料

Material

Polyester

厚度

Thickness

5mm

10mm

15mm

20mm

25mm

风速

Norm Velocity

1.0m/s

初期压损

Initial Pressure Drop

30Pa

40Pa

45Pa

50Pa

58Pa

终期压损

Final Pressure Drop

147Pa

196Pa

196Pa

196Pa

196Pa

平均捕尘效率

Average Trapping Efficiency

76%

80%

85%

88%

90%

耐温度

Heat Resistance

100ºC

捕尘量

Capacity of Dust Arrestment

400g/m2

450g/m2

500g/m2

550g/m2

600g/m2


Model

SGP-100

SGP-200

SGP-300

SGP-400

SGP-500



 Size

5mmT×2m×50m

10mmT×2m×20m

15mmT×2m×20m

20mmT×2m×20m

25mmT×2m×20m



Material

Polyester



Thickness

5mm

10mm

15mm

20mm

25mm



Norm Velocity

1.0m/s



Initial Pressure Drop

30Pa

40Pa

45Pa

50Pa

58Pa

Final Pressure Drop

147Pa

196Pa

196Pa

196Pa

196Pa

Average Trapping Efficiency

76%

80%

85%

88%

90%

Heat Resistance

100ºC



Capacity of Dust Arrestment

400g/m2

450g/m2

500g/m2

550g/m2

600g/m2


1、若遇规格、结构变更,以本公司提供的最新数据为准
2、本公司接受非标准规格的订货

1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications

Model

SGP-100

SGP-200

SGP-300

SGP-400

SGP-500

 Size

5mmT×2m×50m

10mmT×2m×20m

15mmT×2m×20m

20mmT×2m×20m

25mmT×2m×20m

Material

Polyester

Thickness

5mm

10mm

15mm

20mm

25mm

Norm Velocity

1.0m/s

Initial Pressure Drop

30Pa

40Pa

45Pa

50Pa

58Pa

Final Pressure Drop

147Pa

196Pa

196Pa

196Pa

196Pa

Average Trapping Efficiency

76%

80%

85%

88%

90%

Heat Resistance

100ºC

Capacity of Dust Arrestment

400g/m2

450g/m2

500g/m2

550g/m2

600g/m2
